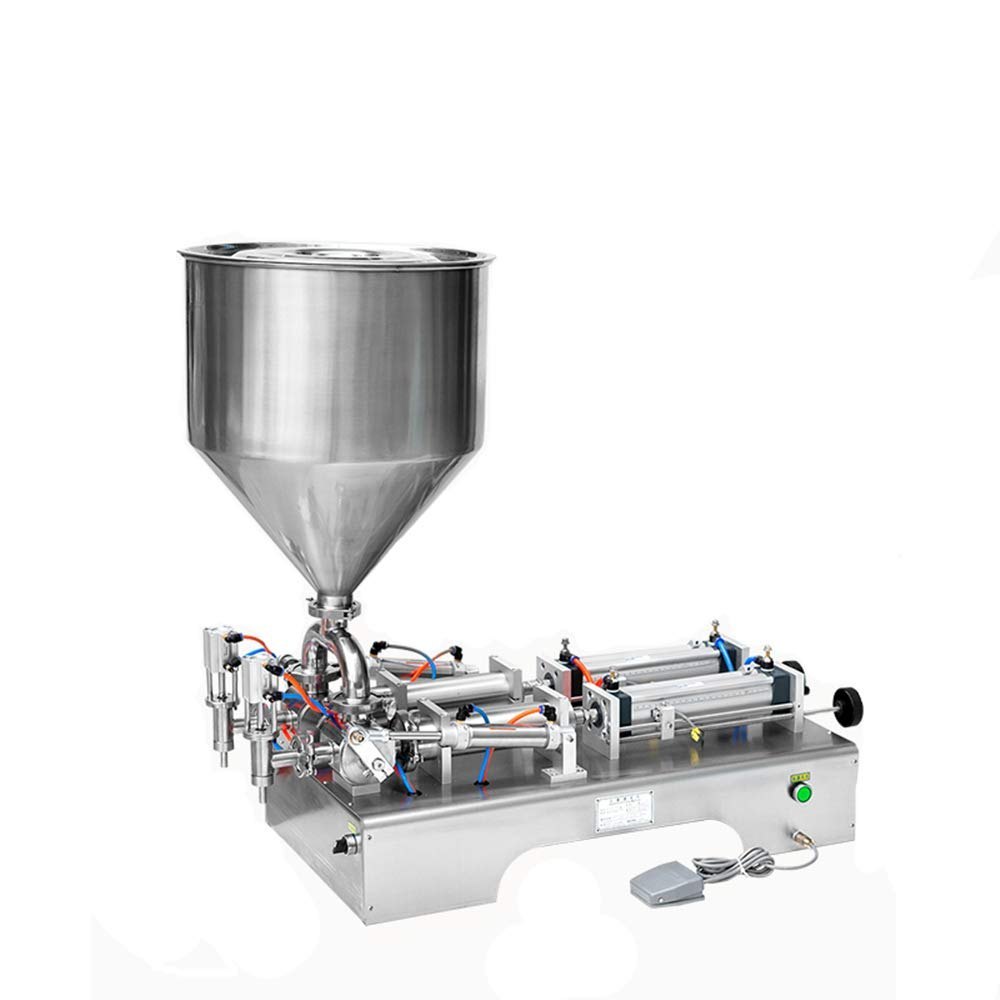

High-capacity 1000ml double head paste filler for gels, creams & sauces. Fast, accurate, and hygienic—ideal for medium-scale production lines.
| Model | PF-1000-DH |
|---|---|
| Type | Semi-Automatic Double Head Paste Filler |
| Filling Range | 100ml – 1000ml per head |
| Filling Accuracy | ±1% |
| Filling Speed | 16–40 fills per minute (product dependent) |
| Operation Mode | Pneumatic / Optional electric drive |
| Nozzle Size | Customizable based on viscosity |
| Contact Material | SS304 / Optional SS316 |
| Air Pressure Required | 4–6 kg/cm² |
| Power Supply | 220V / 50Hz (for electric model) |
| Suitable Products | Pastes, sauces, creams, gels, honey, ointments |
| Cleaning | Tool-free disassembly for quick and hygienic cleanup |
PF-100-DH
